Household, meeting room,School 9W DC12V / 24V/36v Led T8 Tube Lights
Detailed Product Description
Description:
Specifications

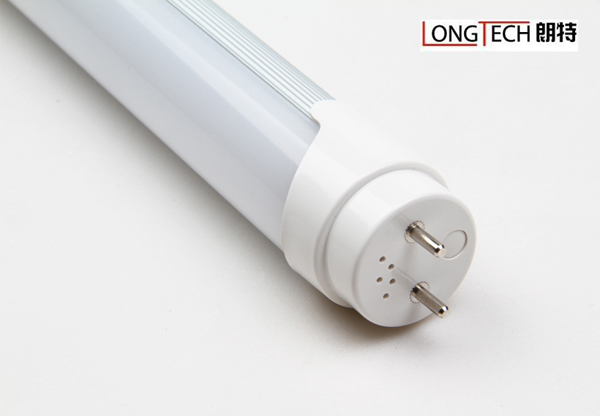

T8 Led tube light, led fluorescent tube
LED Tube Features
Great Lighting source,
the chip of led is of high quality and bigger size, 35*28chip, which model is 8C from Everlight in Taiwan. It can resist higher anti-static and distribute more brightness, esp. 3528 smd led is at least 2500mcd or 8lm.
Low light attenuation,
esp. the white light is adopting new technology, less than 5% in 1000h, however, the traditional attenuation of white color at least 30%;
Ultra quality inner transformer.
The core technology of Tube Light is inner LED driver. Once driver broken, and the whole unit damaged. We have cooperated with one Key University since 2007 here and spent USD8000 mold charge to get one LED driver with exclusive agreement, which is specially for our T8. what's more , we use Japan rubycon , ST for our led driver , make sure the led driver can last as long as possible
More durable & robust.
It can light up to 10 years, comes with 3 years guarantee time.
High safety performance.
We have double isolation from our LED driver. And the output voltage is DC12V/24V instead DC60V in the current market. What is more, our tubes are CE certified , UL , FCC, ETL , and RoHS compliant. With the range of CE, we have passed through EMC and LVD test, so you can apply the tube for your projects freely. In order to confirm the truth of our T8 compared with some faked certification in other suppliers here, here we offer you authorised certified company Most Technology Service Co., Limited . You only open the link and input our Certificate Number, then you will get all details from us.
LongTech LED Tube package, 6steps package make sure completely good units during shippment.
Quick assembly for installation.
For new fixtures its running without ballast and starter, and putting it to conventional fitting directly. It comes with big cost savings. For old fixtures for saving labor cost , you can keep the ballast
Variety of Size.
Tube Light now includes 2ft, 3ft, 4ft, 5ft, 6ft, 8ft.
Characteristics
Absolute Maximum Rating at TA=25
|
Parameter |
Symbol |
LT-T8-60/90/120/150 |
Unit |
|
Working Voltage |
V |
12-24v DC or 85-265v AC |
V |
|
Power |
PD |
9 / 12 / 18 / 22/25/28w |
W |
|
Electrostatic discharge |
ESD |
400 |
V |
|
Operating Temperature |
Topr |
-20+50 |
|
|
Storage Temperature |
Tstg |
-30+60 |
|
Electrical / Optical Characteristics at TA=25
|
Length |
Color |
Color Temp. |
Lumen |
Working Voltage |
Power |
CRI |
Viewing Angle |
|
60cm |
Cool white |
6500K |
950 |
12-24v dc or |
9 |
75 |
140 |
|
SL218 |
3200K |
780 |
9 |
80 |
140 |
||
|
90cm |
Cool white |
6500K |
1290 |
12-24v dc or |
12 |
75 |
140 |
|
SL318 |
3200K |
1032 |
12 |
80 |
140 |
||
|
120cm |
Cool white |
6500K |
1820 |
12-24v dc or |
18 |
75 |
140 |
|
SL418 |
3200K |
1644 |
18 |
80 |
140 |
||
|
120cm |
Cool white |
6500k |
2000 |
12-24v dc or |
22 |
75 |
140 |
|
|
3200k |
1850 |
22 |
80u |
140 |
||
|
150cm |
Cool white |
6500K |
1980 |
12-24v dc or |
22 |
75 |
140 |
|
SL518 |
3200K |
1858 |
22 |
80 |
140 |
||
|
150cm |
Cool white |
6500k |
2400 |
12-24v dc or |
25 |
75 |
140 |
|
SL528 |
3200k |
2200 |
25 |
80 |
140 |
||
|
150cm |
Cool white |
6500k |
2600 |
12-24v dc or |
28 |
75 |
140 |
|
SL538 |
6500k |
2300 |
28 |
80 |
140 |
Notes:Tolerance of measurement of luminous intensity±15%.
Packing Information
|
Length |
Outer Carton Size |
Qty/Carton |
N.W |
G.W |
1PCS/Box |
|
60cm |
1260*300*300 |
60 |
22 |
25 |
|
|
90cm |
1000*300*300 |
30 |
16 |
18 |
|
|
120cm |
1260*300*300 |
30 |
19 |
22 |
|
|
150cm |
1560*300*300 |
30 |
26 |
28 |
Applications:
|
Widespread use in Family, School, |
Office, Showing Room, Meeting Room |
|
Commercial Building, Tower, Hotel, Restaurant |
Factory, Production Line, Warehouse |
|
Pathway lighting, Street lighting |
Subway station, bus and train |
Product Description
|
Latest Colorful rotating end cap& Isolated Driver |
||
|
Specification |
Features |
|
|
Power |
9w |
1, Latest Colorful rotating end cap with vens which can save the heating problem |
|
Luminous |
950±10% |
2, Isolated power supply ( very safe ) |
|
LED Number |
144 |
3, PC cover: Transparant/ frosted/Stripe |
|
Input Voltage |
12-24v dc or |
4, Material: PC + AL |
|
CRI |
Ra:75-91 |
5, Light source: Everlight 8c model, 8lumen/3528 |
|
Power factor |
0.95-0.99 |
6, Certification: TUV, CE(EMC, LVD, UL, SAA)RoHS , FCC |
|
Operating frequency |
50/ 60Hz |
7, LED tube life-span: more than 50, 000 hours |
|
Input current |
58mA |
8, Warranty: 3years |
|
Color Temperature |
2700-3200K; 4000-4500K; 5000~5500K; 6000-6500k |
9, Delivery Time: 3 days for samples, and 15 days for productions |
|
Color |
warm white; daylight white; pure white; cool white |
10, Payment: L/C, T/T, Western Union |
|
Dimension |
Φ26 x /588/1194/1498 |
11, Production Capacity: 50, 000pcs/month |
|
Packaging |
1pc/gift box , 60pcs/CTN, , 24kg/carton |
12, MOQ: 10PCS |
|
Carton measurement |
126*30*30cm |
|
More Product Features
|
HS Code: |
|
|
Trademark: |
LongTech |
|
Model NO.: |
LT-T8-9w |
|
Standard: |
TUV, RoHs , CE(EMC, LUV), and UL |
|
Productivity: |
50, 000PCS /Month |
|
Unit Price: |
US $ 18-48/ Piece |
|
Shipment Terms: |
FOB |
|
Payment Terms: |
L/C, T/T |
|
Minimum Order: |
10 Pieces |
|
Price Valid Time: |
|
|
Origin: |
P. R. C |
|
Packing: |
1PC/Gift box |
|
Usage: |
Indoor Lighting |
|
Shape: |
Straight |
|
Light: |
Color Scanning |
|
Lamp Holder/Base: |
G13 |
|
Export Markets: |
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
