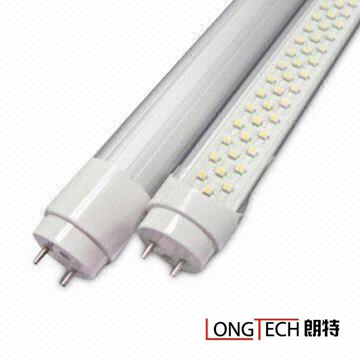

Single end powered on T8 led fluorescent tube light 22W/26w/36w, 2350lm/2600lm/3600lm
Product Description
Manufacturer of T5/T8 LED Tube Light
Easy installation
Solid state/high shock
Aluminum heat sink
CE/RoHS LED Tube Light
Light base G13/FA8/R17D
SMD LED Fluorescent Lamp
Characteristics:
Long Life: 50, 000 + hour lifespan exceeds even the highest quality fluorescents
Extreme Efficiency: Over 80% more efficient than traditional fluorescents
Flicker-Free Lighting: Eliminate eye strain and headaches associated with fluorescents lighting
Shatter-Proof Design: Will not break even if dropped
Double Energy Savings: LED tube requires no ballast saving even more energy
No Mercury Inside: Allows the use of lighting when mercury contamination is not an option
Flexible Voltage: Use lighting AC 85-300V Input Environments
No Interference: Perfect for settings where precise instruments can be disturbed by fluorescent
Instant Starting: Starts right away no matter the temperature or conditions
Applications:
Instead of the indoors ceiling light
School, Universities, Hospital
Conference or Meeting room, show room
Commercial complexes
Factories/Offices
Super-markets
Residential/Institution buildings
Parameters ITEM Model No. LT-T84JU LT-T85KU LT-T86NU Wattage 22W 26W 36W Dimensions 1500mm / 5ft * ?30mm 1800mm / 6ft * ?30mm 2400mm / 8ft * ?30mm Base T8 G13 T8 G13 T8 G13 Lumens 2150-2350 lm 2400-2600lm 3400-3600lm Color Temperature Warm white 3000K Pure white 4500K Cool white 6500K Warm white 3000K Pure white 4500K Cool white 6500K Warm white 3000K Pure white 4500K Cool white 6500K CRI > 75 > 75 > 75 Lighting angle 120° 120° 120° Life time 50,000hrs 50,000hrs 50,000hrs LED quantity 375LEDs 450 LEDs 600 LEDs LED type SMD3528 SMD3528 SMD3528 Input voltage AC 85-264V/277V AC 85-264V/277V AC 85-264V/277V Power factor >0.95 >0.95 >0.95 Power efficiency 85% 85% 85% Net weight 0.62kg 0.9kg 1kg Inner package G.W. 0.8kg 1.2kg 1.35kg Carton dimensions 1570*220*200 1870*220*200 2570*220*200 G.W./CTN (20pcs) 18.50kg 26.50kg 31.00kg
LED Tube Light Dimension
Item |
LT-T81XX |
LT-T82XX |
LT-T83XX |
LT-T84XX |
LT-T85XX |
MT-T86XX |
Size |
2feet |
3feet |
4feet |
5feet |
6feet |
8feet |
Input voltage |
AC85-264V |
AC85-264V |
AC85-264V |
AC85-264V |
AC85-264V |
AC85-264V |
Input frequency |
47-63Hz |
47-63Hz |
47-63Hz |
47-63Hz |
47-63Hz |
47-63Hz |
Diameter(A) |
φ30±0.5mm |
φ30±0.5mm |
φ30±0.5mm |
φ30±0.5mm |
φ30±0.5mm |
φ30±0.5mm |
Length(B) |
588±1.5mm |
892±1.5mm |
1198±1.5mm |
1498±1.5mm |
1798±1.5mm |
2398±1.5mm |
Length(C) |
7±0.2mm |
7±0.2mm |
7±0.2mm |
7±0.2mm |
7±0.2mm |
7±0.2mm |
Diameter(D) |
φ2.2±0.1mm |
φ2.2±0.1mm |
φ2.2±0.1mm |
φ2.2±0.1mm |
φ2.2±0.1mm |
φ2.2±0.1mm |
