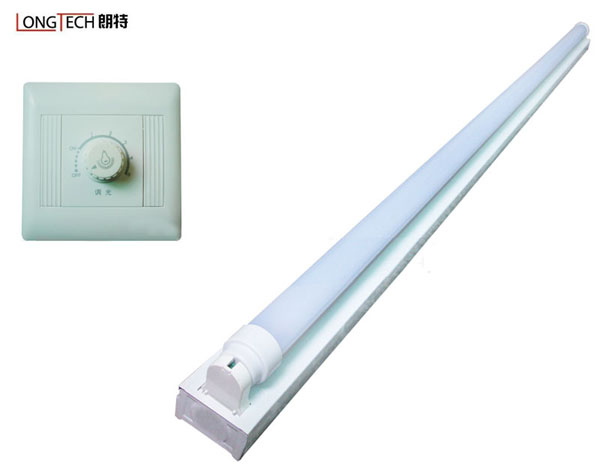

     Product Name:   LED Tube Light T5 4ft 16w Dimmable



LED Tube Light-T5 Dimmable

 Aluminum heat sink, No UV, IR or RF interference, Patented heat sink and optical diffuser, longer life than incandescent & fluorescent tube. No ballast required, universal voltage and constant current design, solid state, high shock & vibration resistant, Mercury free, 66%+savings in energy consumption, quiet, no noise, no flickering.The products are in accordance with CE, RoHS, UL and FCC testing standards. led tube light
 Color Temperature: Warm White:2600-3700K
                              Natural White:4000-4800k
                              Daylight White:5000-6500k
                              COOL White:6500-7500k

LED Tube Light-T5 Dimmable
Features:
1.   IR&Triac dimmer, 0-100% dimmable.
2.   Aluminum heat sink.
3.   600/900/1200/1500/1800/2400mm is available.
4.   Replace T8/T10/T12 fluorescent lamps.
5.   Low lumen decline, “Zero” after 3000 hours.

Description??/span>
LED Tube Light-T5 Dimmable
SMD LED Tubes:


 Model No.

Length

Dia.

LED Qty

Replace

Watts

LED Type

Lumen

 LT-T5-5W

300mm 1ft

16mm

60pcs

15W T5 fluorescent tube

5W

TaiWan SMD

500lm

 LT-T5-10W

600mm 2ft

16mm

120pcs

30W T5 fluorescent tube

10W

TaiWan SMD

1000lm

 LT-T5-12W

900mm 3ft

16mm

150pcs

35W T5 fluorescent tube

12W

TaiWan SMD

1200lm

 LT-T5-16W

1200mm 4ft

16mm

210pcs

40W T5 fluorescent tube

16W

TaiWan SMD

1600lm


Electrical Parameters:
Input Voltage: 100-277VAC
Frequency: 50/60Hz
PF: >0.95

Optical Parameters:
Luminaire Efficiency??/span>90%
LED Efficiency??/span>100lm/W
Color Temperature: Warm White, Natural White, Day White, Cool White

Other Parameters??/span>
Product Patents>Yes
Operating Temperature>-20-50
Storage Temperature-20-50
Appearance>Frosted
Beam angle: 120/160/200 degree
Main Material??/span>Aluminium Alloy + PC cover(clear/frosted/stripe)
End cap: G13, plastic or metal, can single end power on, no electric shock
IP Rank>IP40
CRI: 80Ra
Life Span>>50,000hours

Certifications
CE,RoHs,FCC

Packing info:

Type No.
QTY/ Carton (pcs)
Carton
(cm)
G.W/ Carton
QTY/20'
(pcs)
QTY/40'
(pcs)
QTY/40HQ
(pcs)
 LT-T5-5W
50
L:42W:26* H:25
15kg
46800
108000
127200
LT-T5-10W
50
L:72W:26* H:25
16kg
23400
54000
63600
 LT-T5-12W
50
L:102W:26* H:25
16kg
15600
36000
42000
 LT-T5-16W
50
L:132*W:26* H:25
16.5kg
11700
27000
318000

Application: T5, T8 and T10 for more optional and are used in residential, hall, bar, hotel, restaurant, exhibition hall, parking lot, Houses, offices, meetingrooms, schools, factories, hospitals, workshops, storages etc.
