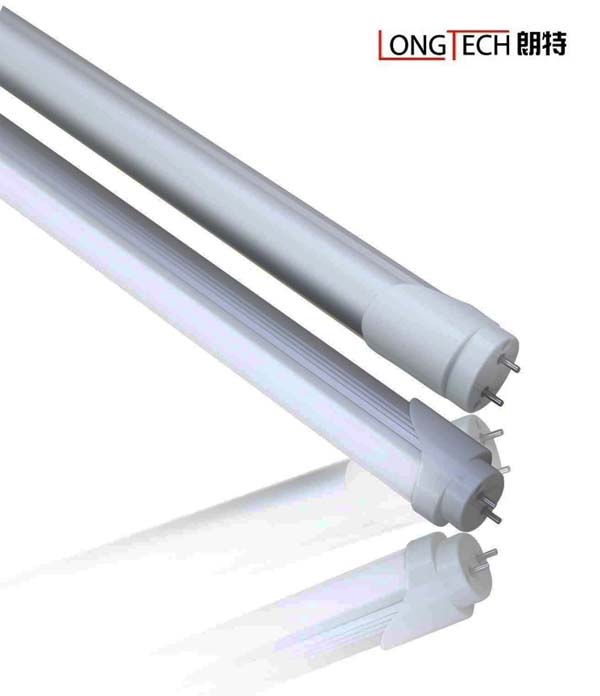

PSE approved T8 LED Tube light Manufacturer is new indoor lighting product. With special circuit design and heat dissipation, the T8 LED Tube Light can achieve high luminous efficacy, energy saving, long lifespan, high lumens, no flickering and high CRI. Applied with new type of LED, the tube has the same or even more light output compared with fluorescent tube without reflector or flick when starting. For example, our 8W, 16W, 21W T8 led tube light fixtures can replace 16W, 32W and 40W traditional fluorescent tubes and do not need ballast or starter. It save another 8-13W.
| LED | 600mm-2FT | 900mm-3FT | 1200mm-4FT | 1500mm-5FT | ||||||||||
| 3528smd | 5W | 8W | 9W | 10W | 11W | 15W | 18W | |||||||
| 3014smd | 9W | 10W | 14W | 18W | 22W | 25W | ||||||||
| 5050smd | 5W | 8W | 9W | 10W | 8W | 15W | 10W | 11W | 14W | 15W | 18W | 20W | 22W | 25W |
PSE approved T8 led tube light fixtures
T8 LED Tube 4FT 15W Parameter
| Model | T8 |
| Power | 15W |
| Size | Φ26 * 1.2M (4FT) |
| LEDQty | 240 * SMD3528 |
| LM | 1440LM |
| Cover | Transparent/Frosted/Strip |
| Material | Aluminium alloy + PC |
| Input voltage | 100-240VAC |
| Frequency | 50-60Hz |
| Beam Angle | 120deg |
| CRI | Ra>78 / Ra>75 |
| Lifetime | 30000 hrs |
| Environment | -20 ~ +30°C |
| Material | Aluminium alloy + PC |
| Color | Warm white/Natural White/ Pure White/Cool White |
T8 LED Tube Cover
1. Stripe cover
2. Transparent cover let can be seen from the front (brightest light output)
3. Frosted cover vivid light effect exactly same as CFL
T8 LED Tube Feature
1. Rotating End Cap: The facility on tubes allows directional lighting to fully optimise product display.
2. Energy saving: saving 50% energy over conventional fluorescent lamps.
3. Replace fluorescent lamp directly.
4. Long lifespan: 30,000 hrs lifespan, 3 time longer than fluorescent lamp, low maintenance cost.
5. Vibration-proof, no flickering.
6. No hazard of mercury or lead entering the environment
7. No danger of broken glass
T8 LED Tube Packing
T8 LED Tube Component
1. Power Supply
2. PC cover top case
3. Aluminum plate Light board
4. Aluminum groove bottom case
5. LED Bulb chip
T8 LED Tube Spectrum report
T8 LED Tube Application
1. Offices
2. Shopping malls
3. Library
4. Exhibition Gallery
5. Factories
6. Closet
7. Recreation application
