Product Name:   T5 LED Tube light,14W 4ft 1200mm SMD3528

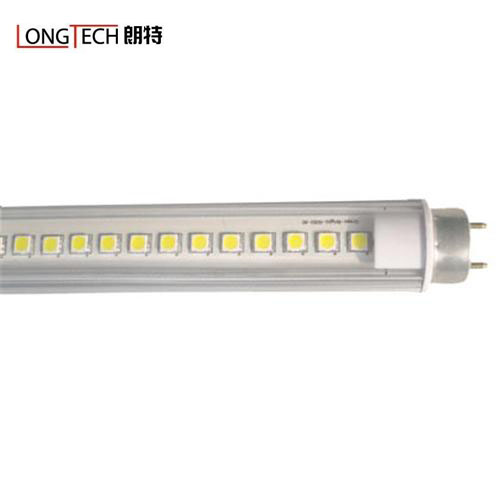

T5 LED Tube Light

High light efficiency: 112-120lm / W, 10W for 30W, saving 2/3, easy to maintain
High-profile high-quality: high-profile Taiwan wafer large chip 2835 lamp beads 0.2w 60mA, 1.2mm thick high thermal conductivity aluminum substrate, power conversion efficiency 92% high efficiency anti-lightning constant current drive, low heat, 12000 hours / 105 ℃ electrolytic capacitor The
High brightness: light efficiency up to 110lm / W or more, is the same power brightness and ordinary T5 integrated fluorescent lamp bracket brightness of 3 times; 10W can replace the ordinary 28W 1.2 m T5 fluorescent lamp!
Super power: saving more than 65%, each lamp a year to save 48 yuan (300 days) 5 years province 240 yuan, T5led lamp costs ignored.
Long life: the use of long life, 12000 hours / 105 ℃ high temperature long life electrolytic capacitors, a installation, life of more than 5 years. 85 degrees working conditions 36000 hours / 85 ℃

T5 LED Tube adopt super bright SMD3528 LED Bulb chip and brings out more lumens. This amazing T5 LED Tube Light is a replacement for traditional T8 fluorescent tubes allowing you to bring LED technology to environments, save over 80% electricity cost.

Size

300mm (1feet)

600mm (2feet)

900mm (3feet)

1200mm (4feet)

Power

3W

4W

5W

7W

8W

10W

8W

11W

15W

8W

14W

15W

16W

18W

20W

T5 LED Tube Lighting

14W T5 LED Tubes Replace 38W T5 fluorescent tubes(no need starter and ballast)

T5 LED Tube light 4FT 14W Parameter

Model	LT-T5-14W
Power	14 W
Size	Φ16 * 1.2M (4FT)
LEDQty	224 * SMD3528
LM	1344LM
Cover	Transparent/Frosted/Strip
Material	Aluminium alloy + PC
Input voltage	100-277VAC
Frequency	50-60Hz
Beam Angle	120deg
CRI	Ra>80
Lifetime	50000 hrs
Environment	-20 ~ +45°C
Material	Aluminium alloy + PC
Color	Warm white/Natural White/ Pure White/Cool White

T5 LED Tube led tube light Cover
1. Stripe cover
2. Transparent cover let can be seen from the front (brightest light output)
3. Frosted cover vivid light effect exactly same as CFL

Color temperature: 2700-7000K

T5 LED Tube Feature
1. Rotating End Cap: The facility on tubes allows directional lighting to fully optimise product display.
2. Energy saving: saving 80% energy over conventional fluorescent lamps.
3. Replace fluorescent lamp directly.
4. Long lifespan: 50,000 hrs lifespan, 3 time longer than fluorescent lamp, low maintenance cost.
5. Vibration-proof, no flickering.
6. No hazard of mercury or lead entering the environment
7. No danger of broken glass

T5 LED Tube Packing

T5 LED Tube Component
1. Power Supply
2. PC cover top case
3. Aluminum plate Light board
4. Aluminum groove bottom case
5. LED Bulb chip

T5 LED Tube Spectrum report

T5 LED Tube Application
1. Offices
2. Shopping malls
3. Library
4. Exhibition Gallery
5. Factories
6. Closet
7. Recreation application
