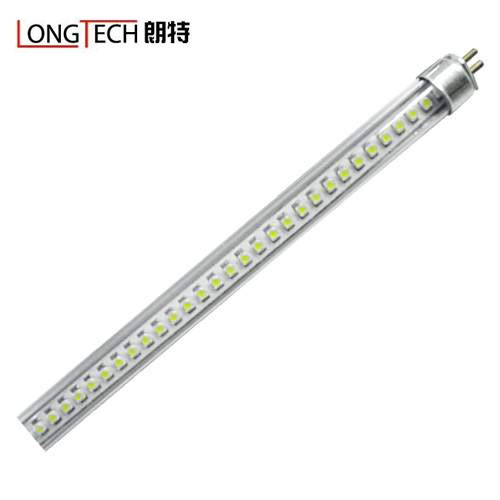

T5 LED Tube Light
T5 LED Tube adopt super bright SMD3528 LED Bulb chip and brings out more lumens. This amazing T5 LED Tube Light is a replacement for traditional T8 fluorescent tubes allowing you to bring LED technology to environments, save over 80% electricity cost.
| Size | 300mm (1feet) | 600mm (2feet) | 900mm (3feet) | 1200mm (4feet) | |||||||||||
| Power | 3W | 4W | 5W | 7W | 8W | 10W | 8W | 11W | 15W | 8W | 14W | 15W | 16W | 18W | 20W |
T5 LED Tube Lighting
3W T5 LED light fixtures Replace 9W T5 fluorescent tubes(no need starter and ballast)
T5 LED light fixtures Parameters
| Item | LT-T5-3W |
| Base Type | T5 |
| Power consumption | 3 Watt |
| Led Brand | Epistar 3528SMD |
| LED Qty | 42 pcs |
| Size | Φ16*300mm(1feet) |
| Packing size/Weigt | 353*235*175/123g |
| Led Luminous Efficiency | 95LM/W |
| Input Voltage | AC85-265V |
| AC input frequency | 47-63Hz |
| Power Supply Efficiency | >91% |
| Power Factor | >0.95 |
| Luminous Flux(lm) | 282 LM (Transparent Cover) |
| 226 LM (Frosted cover) | |
| - | |
| Lamp Light Effect | 80 LM/W |
| Beam Angle | 140°(Clear cover) |
| 190°(Frosted cover) | |
| Illuminance @1-3M High Lux | 1.0M>60 LUX (Clear Cover) |
| 2.0M>18 LUX (Clear cover) | |
| 3.0M>9 LUX (Clear cover) | |
| Color Temperature | WW:3000~3500K |
| NW:4000-4500K | |
| CW:6000-6500K | |
| Tube Material | Aluminum alloy + PC |
| Aluminum Substrate heat sink body | |
| Housing Color | Silver |
| CRI | Ra:80 |
| LED service life | >50,000 hours |
| Environment Temperature | -20~+45 degree celsius |
| Environment Humidity | <95% |
| Body Temperature | <55(Room Temp:25) |
| IP Rating | IP 44 |
| Certificates | CE&RoHS PSE |
Color temperature: 2700-7000K
T5 LED Tube light Feature
1. Rotating End Cap: The facility on tubes allows directional lighting to fully optimise product display.
2. Energy saving: saving 80% energy over conventional fluorescent lamps.
3. Replace fluorescent lamp directly.
4. Long lifespan: 50,000 hrs lifespan, 3 time longer than fluorescent lamp, low maintenance cost.
5. Vibration-proof, no flickering.
6. No hazard of mercury or lead entering the environment
7. No danger of broken glass
T5 led tube light Packing

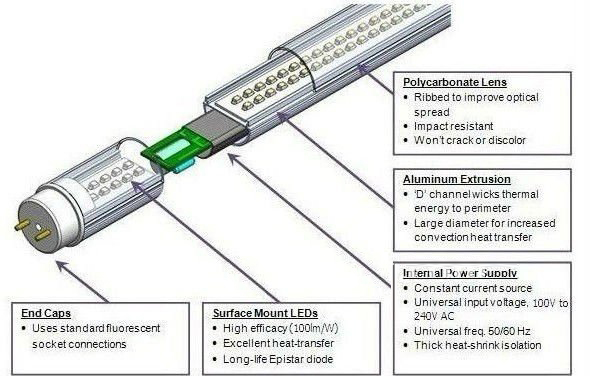

T5 LED Tube light Component
1. Power Supply
2. PC cover top case
3. Aluminum plate Light board
4. Aluminum groove bottom case
5. LED Bulb chip
.jpg)

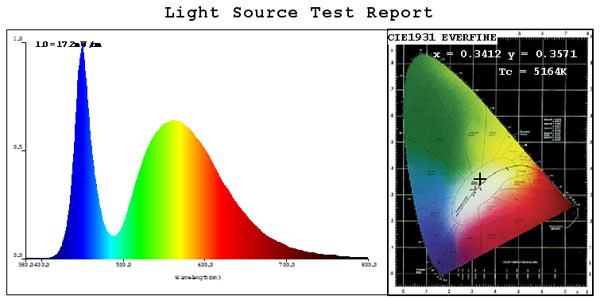

T5 LED Tube Spectrum report
